Plywood Frame for GRP tool..

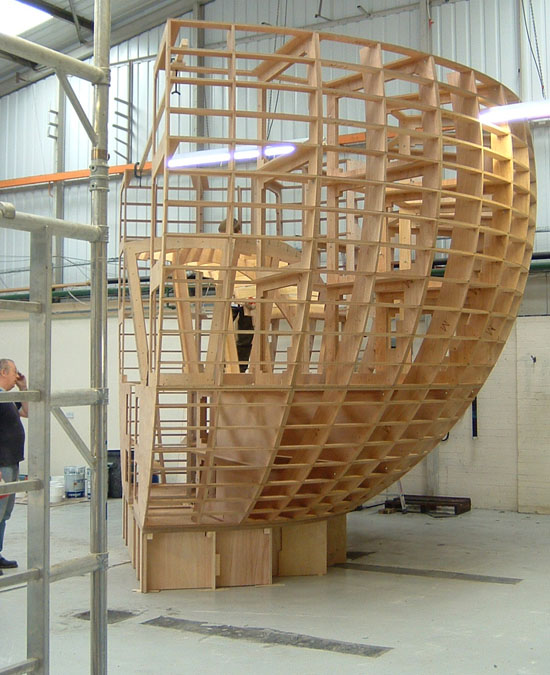

Plywood frame for 180 degree section of a sphere.
The radius is approx 2950mm with an over run of 500mm.
Assembly, and cladded by a top class team of pattern makers.
Accuracy of 2mm was achieved over 5.9 metres
Curved components with engraved reference numbers.
We modelled this in Rhino3D, CAD from a hand drawn sketch on a piece of A4 paper.
Over 95 full sheets of 18mm plywood were used in the construction.
Internal detail showing bolt holes, and dowel holes.
This is a smaller 8 foot radius dish with the cadding in fixed.
Surfaced with developed sections of MDF.
